Description
Winch Gantry Crane are used in open warehouses, windy areas, material stocks area, bridge building, concrete industry, cement plant, granite industry, construction industry, engineering industry, port, transportation, construction, dockyard, and other building sites for lifting and loading unloading objects.

Working Condition
1. Metal structures and mechanical parts should have sufficient strength, stiffness and buckling resistance.
First of all, it is required that parts and metal structures are not damaged after being loaded. For parts such as steel wire ropes with complex stress states, static strength calculations are usually performed with a higher safety factor based on the main load and main deformation form. It must also be required that the deformation of the component under load is within the allowable range, that is, it should have sufficient stiffness.
2. The whole machine must have relatively high anti-overturning stability.
3. The prime mover has the power to meet other requirements, and the braking device should provide the necessary braking torque.

Features
1.The support of the mobile hoist mainly adopts a frame structure, with a moving wheel at the bottom for easy movement and positioning of the entire machine, and is equipped with manual or electric hydraulic lifting devices to facilitate the use of the machine at different working heights.
2.Rack and walking mechanism, cable reel, and equipped with frequency converter.
3.The speed of the large trolley can be adjusted freely within 10-20m/min.

Technical Data

Spare Parts

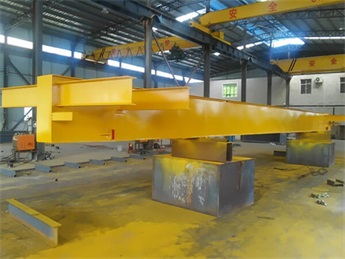

Main beam

The main beam is a box beam or H-beam structure, welded and formed from steel plates. The steel plate material is domestic steel (Q235B). The vertical winding is in accordance with Chinese national standards. All steel plates are subjected to shot blasting pre-treatment to achieve Sa2.5 level standardization. Before welding, the steel plates are carefully inspected and cleaned, usually by automatic welding machines (MIG or semi-automatic welding).

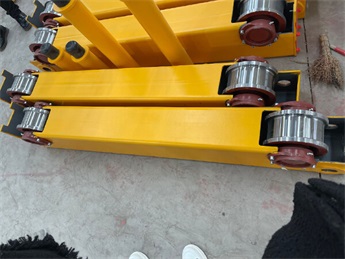

Ground beam

The lower beam is also a box-shaped structure, mainly composed of cover plates, webs, ribs, flange supports and other parts. The production process is similar to that of the main beam and other box beams. After the lower beam structure is completed, the bent plates are assembled according to the drawing. The flange support is welded to the lower beam after the lower beam is made to ensure the level of the flange surface. When the lower beam and the leg are assembled, the flange on the flange made on the leg is welded to the leg. The appearance quality and geometric dimensions of the lower crossbeam after production meet the requirements of the standard GB14406-93.

Winch

The winch is an electromechanical integrated equipment mainly used for the transportation and lifting of objects. This device typically consists of multiple components, such as a winch, guide rail frame, motor, brake, and control system. The characteristics of this machine lie in its portability and flexibility. Due to its compact design, it can be equipped with wheels for movement, allowing for quick transfer between different construction sites. At the same time, its lifting height and load capacity are relatively high, which can meet the transportation needs of various objects.

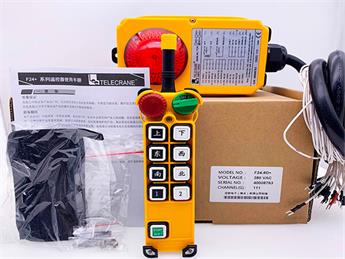

Crane remote control

Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

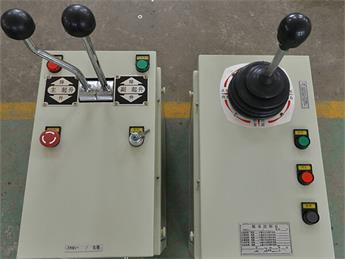

Crane control box

The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
