Description
QC Type Electromagnet Bridge Crane is mainly equipped with electromagnet,Equipped with a detachable electromagnetic disk, this machine is built on a box-shaped bridge. It consists of five parts: the trolley operating mechanism, the trolley, the electrical equipment, and the electromagnetic disk. All mechanisms are operated in the control room and are equipped with rainproof equipment when used in the open air. When the current is turned on, the electromagnet will firmly attract the steel objects and lift them to the designated place. Cut off the current, the magnetism disappeared, and the steel object was put down. The crane is suitable for scrap recycling plants and steel mills.

Working Condition
1.Metal structures and mechanical parts should have sufficient strength, stiffness and buckling resistance.
2. It is required that parts and metal structures are not damaged after being loaded. For parts such as steel wire ropes with complex stress states, static strength calculations are usually carried out based on the main load and main deformation form, and a higher safety factor is used. It must also be required that the deformation of the component under the action of the load is within the allowable range, that is, There should be sufficient stiffness.
Second, the whole machine must have the necessary stability against overturning.
3. The prime mover has the power to meet the operating performance requirements, and the braking device should provide the necessary braking torque.

Features
1.The QC type electromagnetic double beam crane has the characteristics of simple structure, convenient operation, and easy maintenance. It adopts a double beam structure, which can bear a large weight while also achieving lateral movement and up and down lifting. In addition, the QC type electromagnetic double beam crane is also equipped with electromagnetic suction cups, which can achieve adsorption and suspension of objects of various shapes, improving lifting efficiency
2.QC type electromagnetic double beam cranes are widely used in various industrial fields. It can be used on production lines in industries such as steel, machinery, shipbuilding, automobiles, and aviation, as well as for cargo loading and unloading in ports, docks, warehouses, and other places. In addition, the QC type electromagnetic double beam crane can also be used for various lifting operations on construction sites, such as lifting steel bars, concrete components, etc
3.Safety precautions should be taken during the use of QC type electromagnetic double beam cranes. Operators should be familiar with the usage methods and operating procedures of the equipment, strictly abide by safety operation regulations, and ensure the safety and stability of lifting operations. At the same time, the maintenance and upkeep of the equipment is also very important. Regular inspections of various components of the equipment are necessary to promptly detect and handle faults, ensuring the normal operation of the equipment

Technical Data

Spare Parts

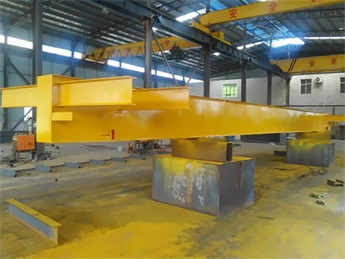

Main beam
The main beam is a box beam or H-beam structure, welded and formed from steel plates. The steel plate material is domestic steel (Q235B). The vertical winding is in accordance with Chinese national standards. All steel plates are subjected to shot blasting pre-treatment to achieve Sa2.5 level standardization. Before welding, the steel plates are carefully inspected and cleaned, usually by automatic welding machines (MIG or semi-automatic welding).

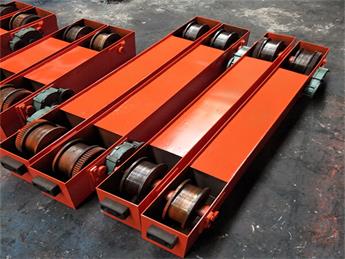

End beam
End beam is a supporting structure designed for lifting machinery, usually located at both ends of the crane, and its function is to provide stable support and balance for the crane. Cranes need to bear enormous weight and inertial forces during operation. Without the support of end beams, the crane is prone to imbalance or even overturning. Therefore, the role of the crane end beam cannot be ignored, as it is one of the key components for the safe operation of the crane.

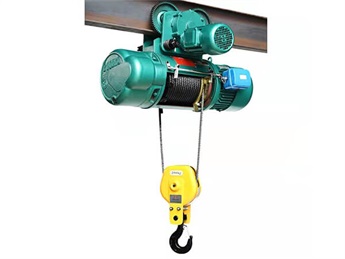

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.

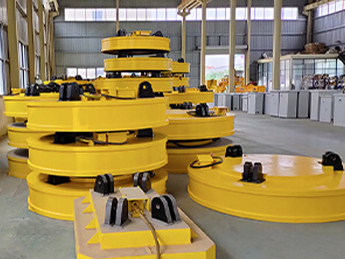

Lifting electromagnet
The device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off.

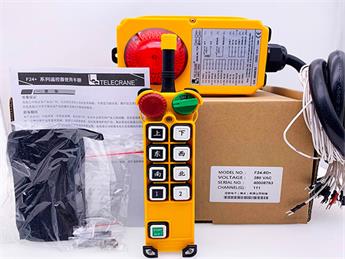

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

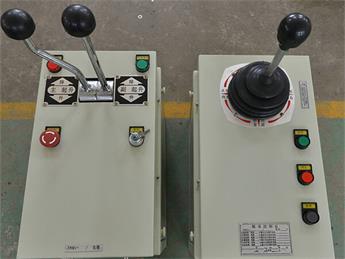

Crane control box
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
