Description
European-style double main girder gantry cranes have strong load-bearing capacity, large spans, good overall stability, and many varieties. However, compared with single main girder gantry cranes with the same lifting capacity, their own mass is larger and the cost is higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, box-shaped structures are used. This product can be widely used in factories, freight yards, warehouses and other places where goods are loaded and unloaded.

Working Condition
The working environment temperature is: -25℃~+40℃
The relative humidity is not more than 85%, and the altitude is not more than 2000m.

Features
1.Large carrying capacity
2.Good overall stability
3.Self-importance
4.Three-level drive, high work efficiency

Technical Data

Capacity (ton)		5	10	16/3.2	20/5	32/5	50/10
Span (m)		18,22, 24, 26, 30, 35
Lifting height (m)		10.11,12
Working class		A5
Control way		Cabin control or remote control
Power source		380V 50HZ 3phase (Could supply it as yours)
Trolley lifting mechanism
Lifting speed (m/min)	Main hook	11.3	8.5	7.9	7.2	7.5	5.9
	Auxiliary hook	–	–	14.6	15.4	15.4	10.4
Trolley traveling mechanism
Traveling speed (m/min)		37.3	35.6	36.6	36.6	37	36
Crane traveling mechanism
Traveling speed (m/min)		37.3	39.7	37.3	39.7	39.4	38.5
Motor power(Kw)		40.8-51.8	41.5-52.8	80-77	84-81	99.3-117.3	126.5
Steel track recommended		43kg/m				43kg/m or QU70

Spare Parts

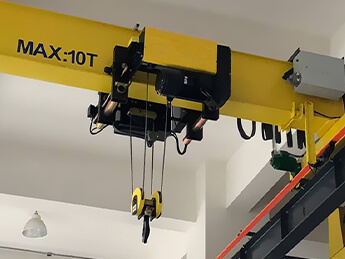

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.

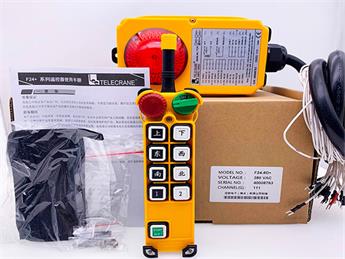

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

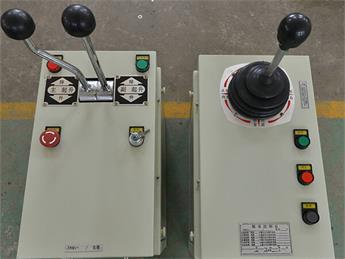

Crane control box
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%

Keywords

European Crane

European Double Beam Gantry Crane

Power source: 380V 50hz 3Phase Lifting capacity: 3-20t Span: 18-35m Lifting height: 10-12m Working level: A3-A7
