Description
The fixed column jib crane is a new generation of lightweight lifting equipment made to adapt to modern production. The fixed column jib crane, combined with a reliable chain electric hoist, is particularly suitable for short distance, frequent use, and intensive lifting operations. It is an energy-saving and practical material lifting equipment. It can be widely used for loading and unloading goods on production lines, assembly lines, and machine tools in factories, mines, workshops, as well as for lifting heavy objects in warehouses, docks, and other occasions.

Working Condition
Working temperature: -20~+40 ℃

Features
1.It has the advantages of novel structure, rationality, simplicity, convenient operation and use, flexible rotation, and large working space.
2.Energy saving, trouble saving, small footprint, easy to operate and maintain, etc

Technical Data

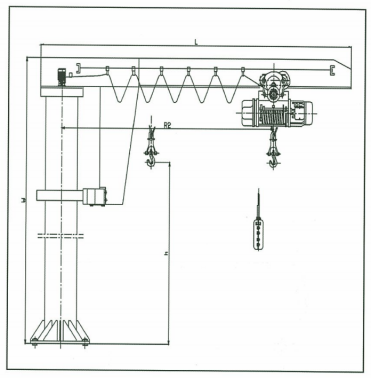

Model	Lifting weight	Hoisting speed(CD wire rope hoist)	Rotation speed(r/min)	Arm length L(mm)	R2(mm)	R1(mm)	H(mm)	h(mm)
ZB-A0.25-D/S	0.25T	8(m/min)	0.92	5425	5000	1000	5100	4000
ZB-A0.5-D/S	0.5T		0.92	5425	5000	1000	5100	4000
ZB-A1-D/S	1T		0.76	5500	5000	1000	5100	4000
ZB-A2-D/S	2T		0.76	3765/5565/6525	3300/5000/6000	1300/1300/1500	4350/5400/4660	3000/4000/3500
ZB-A3-D/S	3T		0.59	5560	5000	1500	3150	3500
ZB-A5-D/S	5T		0.51	4680	4000	1800	4770	3000

Spare Parts

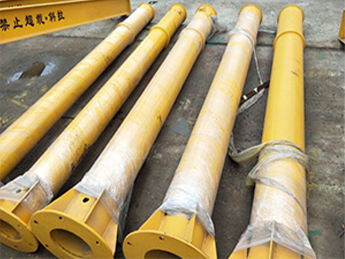

Column
The lower end of the column is fixed to the concrete foundation through anchor bolts

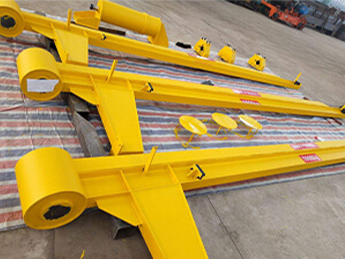

Slewing arm
The slewing arm can be rotated according to customer needs

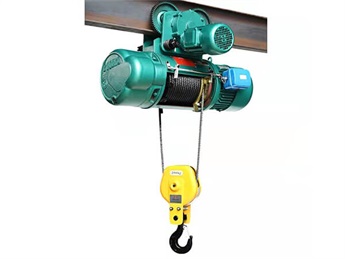

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

Keywords

Jib Crane

Fix Column Jib Crane

Capacity: 0.25T – 10T Lift height: 3m-8m Span: 3m-7m Power source: 380V 50Hz 3P or Customized
