Description
The walking track of the machine is installed on the cement column of the factory building, and longitudinal movement can be carried out along the track. At the same time, the electric hoist can also complete lateral movement along the selection arm and vertical lifting. This machine greatly expands the operating range and effectively utilizes the factory space, resulting in a more ideal usage effect. The lifting capacity ranges from 1000KG to 5000KG, and the lifting height can be customized by customers.
Working Condition
Working temperature: -20℃-40℃
Features
1.Wide operating range and flexible angles
2.Better utilization of factory space with smaller footprint
Technical Data
|
Capacity – t |
0.25-5 |
|
Lift height – m |
3-10 |
|
Radius – m |
2-6 |
|
Lift speed – m/min |
8 |
|
Traveling – m/min |
20 |
|
Rotation Speed-m/min |
0.76-0.53 |
|
Rotation – degree |
180 |
|
Control way |
Pendent / Remote Control |
|
Working temperature |
-20~+40℃ |
Spare Parts

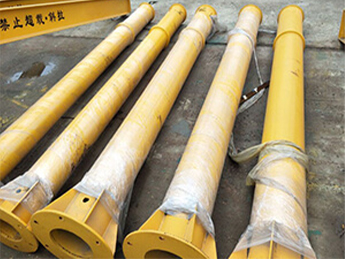

Column
The lower end of the column is fixed to the concrete foundation through anchor bolts

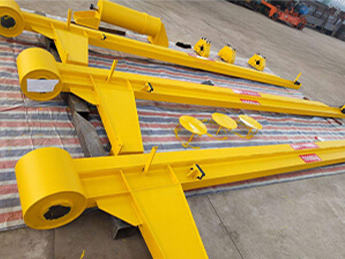

Slewing arm
The slewing arm can be rotated according to customer needs

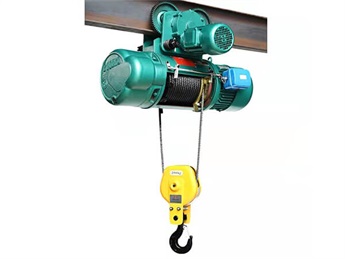

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.

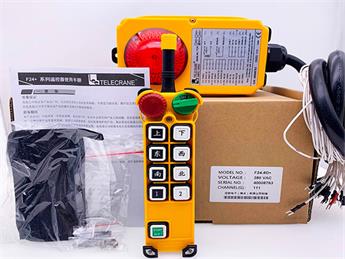

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Keywords
Wall Mount Jib Crane
