Description
Chain hoist is a kind of light and small lifting equipment. The electric chain hoist consists of an electric motor, a transmission mechanism and a sprocket. The electric chain hoist is all produced in accordance with international standards, the body is beautiful in appearance, strong and durable, and the internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears.

Working Condition
Working temperature: -20~+40 ℃

Features
1.The electric chain hoist is operated by the operator on the ground with a button, and can also be operated in the control room or controlled by wired (wireless) remotely.
2.The electric chain hoist can be used for fixed suspension, and can be used with electric monorail trolley and hand-pushed/hand-pulled monorail trolley.

Technical Data

Type	Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Lifting Motor					Beam (mm)
Type	Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Power (kw)	Rotation Speed (r/min)	Phase	Voltage (v)	Frequency (hz/s)	Beam (mm)
01	1	3/9	3.9	0.75	1440	3	220-440	50/60	100-160
02	2	3/9	3.4	1.5	1440	3	220-440	50/60	120-160
03	3	3/9	3.4	3.0	1440	3	220-440	50/60	120-180
04	5	3/9	2.8	3.0	1440	3	220-440	50/60	120-180

Spare Parts

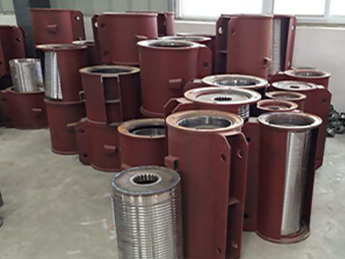

Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.

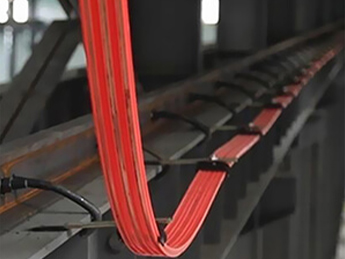

Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required

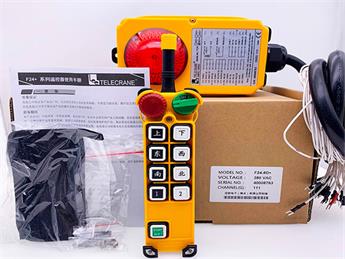

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

Keywords

Electric Hoist

Electric Chain Hoist

Hoisting high: 3-120m Hoisting speed: 2.8-8.8 m/min Travel speed: 20 m/min Power supply: 380V 50hz 3P
