Description
Electric wire rope hoist is a kind of small lifting equipment with compact structure, light weight, small size, strong versatility of parts and components, easy to operate, etc., mainly used for all kinds of lifting, pulling, loading and unloading heavy objects, oil tank flip welding, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment, suitable for construction and installation companies, factories and mines of civil engineering and bridge construction, electric power, shipbuilding, automobile manufacturing, construction, highways, bridges, metallurgy, mines, slope tunnels, Machinery and equipment for infrastructure projects such as shaft treatment and protection.
Working Condition
Working temperature: -20~+40 ℃
Features
1.Light weight, small size, and strong versatility of parts.
2.It is easy to operate and flexible in operation.
Technical Data
|
CD,MD Series Electric Wire Rope Hoist（0.25T-20T） |
||||||||||||||||||||||||||
|
Type |
CD1 MD1 |
|||||||||||||||||||||||||
|
Capacity |
T |
0.25 |
0.5 |
1 |
2 |
3 |
||||||||||||||||||||
|
Lifting Height |
m |
3 |
6 |
9 |
6 |
9 |
12 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
|
|
Lifting Speed |
m/min |
8 |
8/0.8 |
8/0.8 |
8/0.8 |
8/0.8 |
||||||||||||||||||||
|
Traveling Speed |
m/min |
20(30) |
20(30) |
20(30) |
20(30) |
20(30) |
||||||||||||||||||||
|
Wire rope |
Rope d |
mm |
3.6 |
4.8 |
7.4 |
11 |
13 |
|||||||||||||||||||
|
Wire d |
Mm |
|
0.22 |
0.34 |
0.5 |
0.6 |
||||||||||||||||||||
|
Structural |
6×9 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
|||||||||||||||||||||
|
track model（GB76-88） |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
|||||||||||||||||||||
Spare Parts

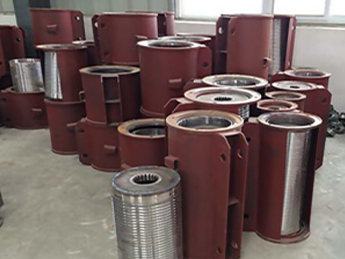

Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.

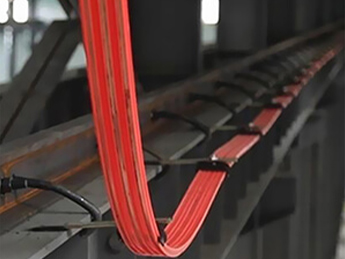

Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required

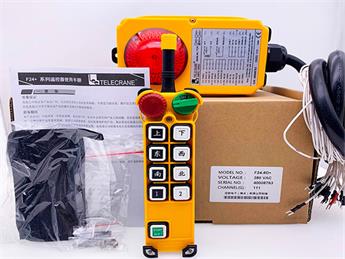

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
