Description
Explosion-proof electric hoist is a kind of light and small lifting equipment, explosion-proof electric hoist light weight, small size, large lifting capacity, when the plant is filled with explosive mixture, under the premise of ensuring safety, it is a favorable tool to improve labor conditions and improve labor productivity, and it is a necessary mechanical equipment for production.
Working Condition
Working temperature: -20~+40 ℃
Suitable for indoor use; When used outdoors, it is necessary to add a protective device.
Features
1.The explosion-proof electric hoist is composed of several parts that can be disassembled separately, which is very convenient to use, maintain and overhaul, and can shorten the maintenance cycle.
2.Its explosion-proof motor and explosion-proof control box are separate flameproof structures. Control buttons, limit switches, and explosion-proof lifting weight limiters all meet the corresponding explosion-proof requirements.
3.The parts are highly versatile and interchangeable.
Technical Data
|
BCD, BMD Series Electric Wire Rope Hoist（0.25T-20T） |
||||||||||||||||||||||||||
|
Type |
BCD1 BMD1 |
|||||||||||||||||||||||||
|
Capacity |
T |
0.25 |
0.5 |
1 |
2 |
3 |
||||||||||||||||||||
|
Lifting Height |
m |
3 |
6 |
9 |
6 |
9 |
12 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
|
|
Lifting Speed |
m/min |
8 |
8/0.8 |
8/0.8 |
8/0.8 |
8/0.8 |
||||||||||||||||||||
|
Traveling Speed |
m/min |
20(30) |
20(30) |
20(30) |
20(30) |
20(30) |
||||||||||||||||||||
|
Wire rope |
Rope d |
mm |
3.6 |
4.8 |
7.4 |
11 |
13 |
|||||||||||||||||||
|
Wire d |
Mm |
|
0.22 |
0.34 |
0.5 |
0.6 |
||||||||||||||||||||
|
Structural |
6×9 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
|||||||||||||||||||||
|
track model（GB76-88） |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
|||||||||||||||||||||
Spare Parts

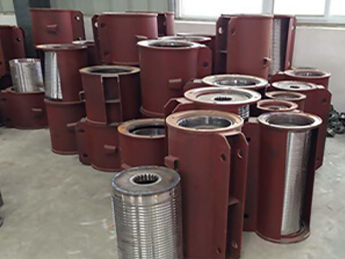

Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.

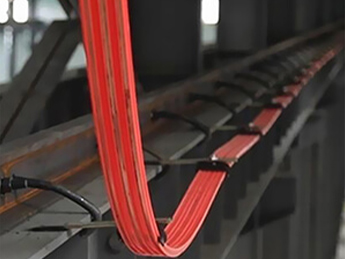

Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required

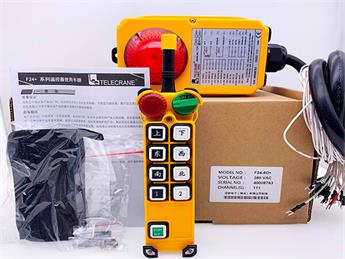

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Keywords
HB Type Explosion Proof Electric Hoist
