Description
The metallurgical electric hoist is a metallurgical wire rope electric hoist specially designed to transport molten metal or other high-temperature solid items. It can not only be used as an electric single girder, electric suspension, hoist double girder crane and other lifting mechanisms that meet the requirements of use, but also can be independently installed on fixed overhead tracks, which is a safe and reliable light special lifting equipment for small and medium-sized metallurgical workshops. Metallurgical electric hoist Scope of application is suitable for metallurgical industry and is used to transport molten metal.
Working Condition
Working temperature: -10 ℃~+60 ℃
The working level of the lifting mechanism of the metallurgical hoist should not be lower than M6, and the lifting height, lifting speed and operating speed should be in accordance with JB/T 9008.1
Features
1.The metallurgical electric hoist works at the highest level of M6;
2.The lift mechanism is composed of support brakes and safety brakes.
Technical Data
|
YJCD, YJMD Series Electric Wire Rope Hoist（0.25T-20T） |
||||||||||||||||||||||||||
|
Type |
YJCD1 YJMD1 |
|||||||||||||||||||||||||
|
Capacity |
T |
0.25 |
0.5 |
1 |
2 |
3 |
||||||||||||||||||||
|
Lifting Height |
m |
3 |
6 |
9 |
6 |
9 |
12 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
6 |
9 |
12 |
18 |
24 |
30 |
|
|
Lifting Speed |
m/min |
8 |
8/0.8 |
8/0.8 |
8/0.8 |
8/0.8 |
||||||||||||||||||||
|
Traveling Speed |
m/min |
20(30) |
20(30) |
20(30) |
20(30) |
20(30) |
||||||||||||||||||||
|
Wire rope |
Rope d |
mm |
3.6 |
4.8 |
7.4 |
11 |
13 |
|||||||||||||||||||
|
Wire d |
Mm |
|
0.22 |
0.34 |
0.5 |
0.6 |
||||||||||||||||||||
|
Structural |
6×9 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
D-6×37+1 |
|||||||||||||||||||||
|
track model（GB76-88） |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
|||||||||||||||||||||
Spare Parts

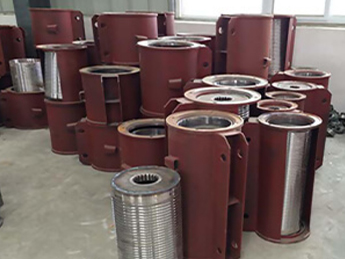

Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.

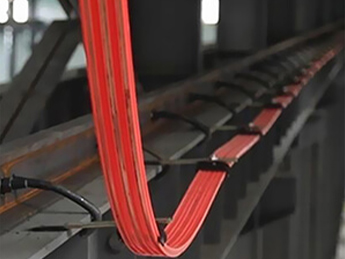

Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required

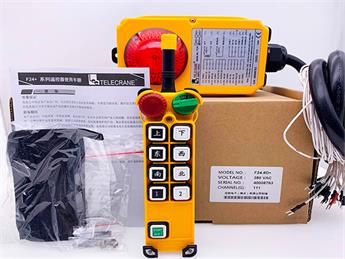

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Keywords
Metallurgical Electric Hoist
