Description
European electric chain hoist has the advantages of high performance, high safety and reliability. It adopts humanized design concept, increases production and makes work reach the highest efficiency. European electric chain hoist can be installed on KBK track of standard components. All electrical connections are plug-in type, plug-and-play universal suspension mechanism, which can be used for KBK standard track and can be quickly connected to trolley.

Working Condition
The applicable scope and operating conditions of this product: Suitable for ambient temperature of -20℃~40℃, no fire, explosion risk, corrosive and irritating media and dust-free working environment. It is strictly prohibited to lift molten metal materials, toxic, flammable and explosive objects.

Features
1.It is flexible and accurate in positioning.
2.The main lifting speed is fast and effective, and the low-speed lifting ensures stable load and accurate positioning.
3.High working efficiency and long service life
4.The sprocket of the European chain hoist is compact and plug-and-play, which makes replacement quick and easy without disassembling the motor or gearbox components. Long downtime caused by maintenance work is a thing of the past.

Technical Data

Model	Load（KG)	Lifting speed (m/min)	Motor power (kw)	Motor speed (r/min)	Operating voltage (V)	Control voltage (v)	Working class (FEM/ISO)
BMS0.125-01M	125	8/2	0.4/0.1	2880/720	220-460	24	2M/M5
BMS0.125-01M	125	16/4	0.8/0.2	2880/720	220-460	24	2M/M5
BMS0.25-01M	250	8/2	0.4/0.1	2880/720	220-460	24	2M/M5
BMS0.25-01M	250	12/3	0.8/0.2	2880/720	220-460	24	2M/M5
BMS0.25-01M	250	16/4	1.8/0.45	2880/720	220-460	24	2M/M5
BMS0.5-01M	500	8/2	0.8/0.2	2880/720	220-460	24	2M/M5
BMS0.5-01M	500	12/3	1.8/0.45	2880/720	220-460	24	2M/M5
BMS0.5-01M	500	24/6	2.3/0.6	2880/720	220-460	24	2M/M5
BMS0.5-01M	500	16/4	2.3/0.6	2880/720	220-460	24	2M/M5
BMS0.5-02M	500	4/1	0.4/0.1	2880/720	220-460	24	2M/M5
BMS01-01M	1000	12/3	2.3/0.6	2880/720	220-460	24	2M/M5
BMS01-01M	1000	8/2	1.8/0.45	2880/720	220-460	24	2M/M5
BMS01-01M	1000	6/1.5	1.8/0.45	2880/720	220-460	24	2M/M5
BMS01-02M	1000	4/1	0.8/0.2	2880/720	220-460	24	2M/M5
BMS01-01M	1000	16/4	3.6/0.9	2880/720	220-460	24	2M/M5
BMS1.6-01M	1600	12/3	3.6/0.9	2880/720	220-460	24	2M/M5
BMS02-01M	2000	8/2	3.6/0.9	2880/720	220-460	24	2M/M5
BMS02-02M	2000	4/1	1.8/0.45	2880/720	220-460	24	2M/M5
BMS02-01M	2000	6/2	3.6/1.2	1440/480	220-460	24	2M/M5
BMS2.5-01M	2500	8/2	4/1	2880/720	220-460	24	2M/M5
BMS2.5-01M	2500	6/2	4/1.3	1440/480	220-460	24	2M/M5
BMS2.5-01M	2500	4/1.35	4/1.3	1440/480	220-460	24	2M/M5
BMS3.2-02M	3200	4/1	3.6/0.9	2880/720	220-460	24	2M/M5
BMS3.2-02M	3200	6/1.5	4/1	2880/720	220-460	24	2M/M5
BMS3.2-02M	3200	3/1	3.6/1.2	1440/480	220-460	24	2M/M5
BMS05-02M	5000	4/1	4/1	2880/720	220-460	24	2M/M5
BMS05-02M	5000	3/1	4/1.3	1440/480	220-460	24	2M/M5

Spare Parts

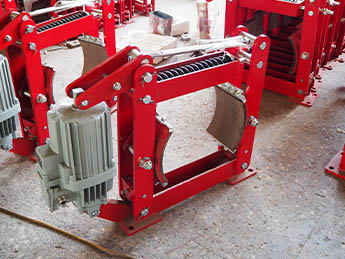

Magnetic brake
This is an innovative magnetic brake system, which is characterized by the ability to brake immediately when the power is disconnected, ensuring the safety of the hoisting operation without delay.

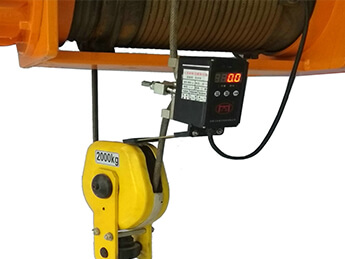

Limit switch (limiter)
The function of this device is to prevent the chain from exceeding the safety range. Once the predetermined limit is reached, it will automatically stop running. Note that it cannot be used as a brake function.

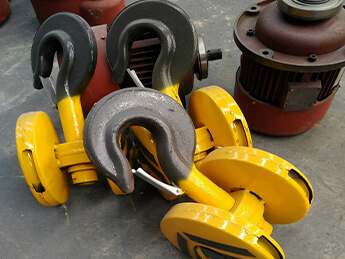

Hook
Made through hot forging, the lower hook has a 360-degree rotation function and is equipped with an anti-slip safety tongue to enhance the safety of use.

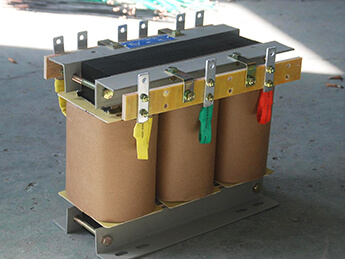

Transformer
Provides 24V/36V transformer protection, effectively preventing the risk of leakage during operation and enhancing operational safety.

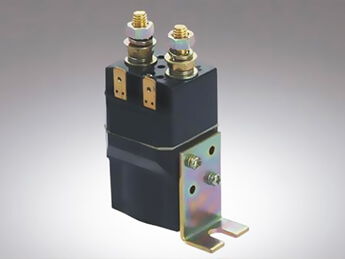

Electromagnetic contactor
It ensures high efficiency and stability of electric hoist operation, and reduces the risk of high temperature failure caused by long-term use.

Control system
Includes control buttons and switches, used to control the rise and fall of the electric hoist.

Keywords

Electric Hoist

European Chain Hoist

Load capacity: 125kg～2000kg Lifting height: 3m~20m or customized Drive device: electric or manual Working level: M5 Power supply: according to your power supply Application: molds, machinery manufacturing, warehousing and logistics, shipbuilding, bridge construction and other industries and factories and other special purposes.
