Description
The European double-beam wire rope hoist breaks the design thinking of traditional CD hoists for many years. It takes modular design as the theme. The lifting mechanism adopts planetary gears to transmit speed, making the structure compact and light. It is installed in the drum to effectively reduce the size of the electric hoist. The outer shell adopts a square box structure to change the appearance of the hoist, so that the product can be used in a variety of installation forms. The overall performance of the product is improved, and the cost-effectiveness is fully considered to bring customers more affordable and good products.

Working Condition

This product is suitable for working in an environment with a temperature of -20℃-+40℃.

Features
1.Accurate positioning, efficient operation, and improved logistics efficiency
2.The high-quality drive unit ensures safe, stable and efficient operation. The compact structural design ensures that the offset size of the hook is smaller. It provides standard configurations of lifting double speed (variable frequency optional) and trolley variable frequency, ensuring the efficient operation of the crane, the improvement of workshop logistics efficiency, and ensuring that the customer’s various work plans are carried out as scheduled.
3.The specialized technical product has a variety of monitoring and protection functions to ensure the safe and reliable operation of the crane. Its operation monitoring unit can record the operation of the electric hoist, the motor operation status and the safe working cycle in detail, and warn in advance. All records can provide data for maintenance, understand the root cause of the problem, and make the maintenance of the crane more timely and quick.
4.Modular design, low maintenance cost, and complete spare parts service
The concept of modular design has been throughout the design of the entire product, ensuring the standardization and interchangeability of components and greatly reducing the maintenance cost of the product. All product lines of the company have a complete inventory of spare parts, and the professional service team ensures that after-sales service is provided to customers in a timely manner to solve the worries of customers after purchasing equipment.

Technical Data

Capacity (t)	Working class	Lifting height (m)	Lifting speed (m/min)	Rope reeving	Travelling speed (m/min)	Track distance K(mm)	trolley base distance w(mm)	trolley height B(mm)	hook limit position H(mm)
5	M5	6	5/0.8	4/1	2-20	1600	1000	449	350
		9
		12
10	M5	9	5/0.8	4/1	2-20	1600	1000	586	500
		12				1600
		15				1600
		18				2000
		24				2000
16	M5	9	4/0.67	4/1	2~20	2000	1200	747	850
		12				2000
		15				2400
		18				2600
20	M5	9	4/0.67	4/1	2~20	2000	1200	747	850
		12				2000
		15				2400
		18				2600
		24				3000
32	M5	8	2.7/0.45	6/1	2~20	2400	1200	784	900
		10				2400
		12				2400
		16				2400
32	M5	6	0.82~4.9	8/2	2~20	2400	1200	740	1520
		9				2400
		13.5				2800
		18				3300
50	M5	6	0.53~3.2	12/2	2~20	2400	1600	800	1400
		9				2800
		12				3300
		15				3800
		18				4200
80	M5	6.5	0.5~2.4 frequency conversion	16/2	2~20	2900	2500	951	1860
		9				3400
		11				3800
		15				4500

Spare Parts

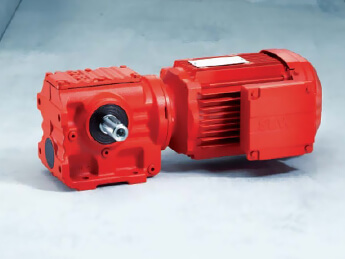

Motor
The core part of the electric hoist, used to generate power.

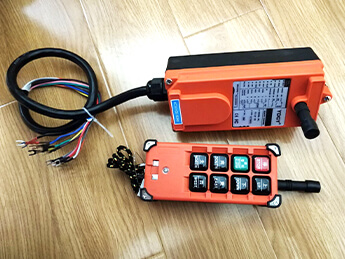

Control system
Includes control buttons and switches, used to control the rise and fall of the electric hoist.

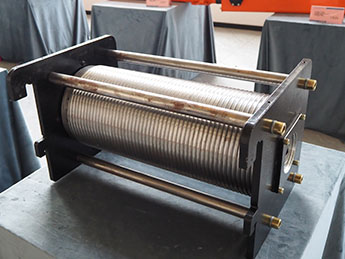

Suspension system
Includes wire ropes and suspension components, used to suspend loads.

Keywords

Electric Hoist

European Double Beam Wire Rope Hoist

Capacity: 1~80t Lifting height: 0~60m Working level: M5 Power: according to your power supply Explosion-proof sign: ExdeibllCT4Gb/Ex tD A21 IP65 T130℃ Application: Bridge cranes, gantry cranes, jib cranes and other material handling cranes.
