Description
The product has simple structure, light weight, stable operation and low noise. It is mainly used for general lifting and loading and unloading operations in machinery manufacturing workshops, warehouses, assembly and hydropower drill maintenance.

Working Condition
It is not suitable for the medium with explosion hazard and fire hazard, and the place full of corrosive gas, nor is it suitable for lifting melted metals and toxic, flammable and explosive materials

Features
1.Compact structure, light weight, low wheel pressure, maximum utilization, and high comprehensive cost-effectiveness.
2.Selected high-quality components, safe, reliable, and durable.
3.Accurate positioning, efficient operation, and improved logistics efficiency.
4.Safe and reliable, operation monitoring, and convenient maintenance.

Technical Data
Using for single girder bridge crane
1.Mainly used on single girder crane with capacity 1-20T
2.It has integrated and compact design which will saves space for the user.
3.Modular design increase the reliability of mechanism meanwhile reduces the time and cost for maintaining.
4.It has more and faster hoisting speed than traditional hoist.
Using for double girder bridge crane
1.Mainly used on double girder crane with capacity 2~80T.
2.It has integrated and compact design which will saves space for the user.
3.Modular design increase the reliability of mechanism meanwhile reduces the time and cost for maintaining.
4.The standard trolley traveling mechanism is controlled by converter which makes a little swing and accurate position during working.

Rated capacity(kg)	Working class(FEM)	Working class(ISO)	Hoisting height(m)	Hoisting speed(m/min)	Traveling speed(m/min)
1000	4M	M7	6/9/12/18	0.8/5.0	5~20
1250	3M	M6	6/9/12/18	0.8/5.0	5~20
1600	3M	M6	6/9/12/18	0.8/5.0	5~20
1600	2M	M5	6/9/12/18	1.6/10	5~20
2000	2M	M5	6/9/12/18	0.8/5.0	5~20
2000	3M	M6	6/9/12/18	1.3/8.0	5~20
2500	3M	M6	6/9/12/18	0.8/5.0	5~20
2500	3M	M6	6/9/12/18	1.0/6.3	5~20
2500	2M	M5	6/9/12/18	1.3/8.0	5~20
3200	2M	M5	6/9/12/18	0.8/5.0	5~20
3200	2M	M5	6/9/12/18	1.0/6.3	5~20
3200	1AM	M4	6/9/12/18	1.6/10	5~20
5000	2M	M5	6/9/12/18	0.8/5.0	5~20
5000	3M	M6	6/9/12/18	1.0/6.3	5~20
5000	2M	M5	6/9/12/18	1.6/10	5~20
6300	1AM	M4	6/9/12/18	0.8/5.0	5~20
6300	4M	M7	6/9/12/18	0.8/5.0	5~20
6300	2M	M5	6/9/12/18	1.3/8.0	5~20
8000	3M	M6	6/9/12/18	0.8/5.0	5~20
10000	1AM	M4	6/9/12/18	1.0/6.3	5~20
10000	2M	M5	6/9/12/18	0.8/5.0	5~20
10000	3M	M6	6/9/12/18	0.66/4.0	5~20
12500	1AM	M4	6/9/12/18	0.8/5.0	5~20
12500	2M	M5	6/9/12/18	1.6/4.0	5~20
12500	1AM	M4	6/9/12/18	1.0/6.3	5~20
12500	3M	M3	6/9/12/18	0.6/4.0	5~20
16000	2M	M5	6/9/12/18	0.6/4.0	5~20
20000	1AM	M4	6/9/12/18	0.6/4.0	5~20

Spare Parts

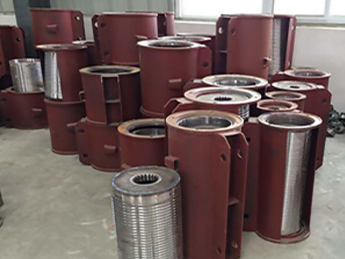

Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.

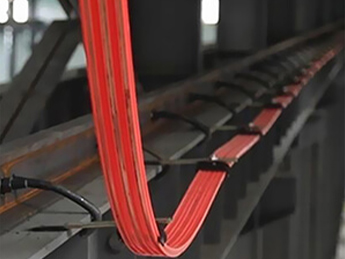

Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required

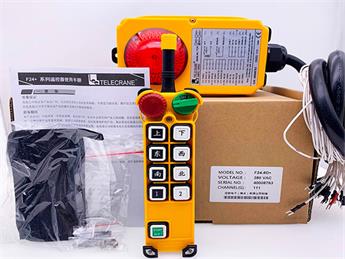

Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

Keywords

Electric Hoist

European Wire Rope Electric Hoist

Working temperature: -20 ~ 40 ℃ Power supply: AC-3Phase/380 /50Hz (or custom made) Control way: Wireless remote control Travel speed: 5~20m/min
