Description
Low headroom chain hoist is a type of electric chain hoist, which is a light and small lifting equipment. All electric chain hoists are produced according to international standards, with beautiful appearance, strong and durable, and all internal gears are high-temperature quenched. Low headroom chain hoists have excellent performance.

Working Condition
The applicable scope and operating conditions of this product: Suitable for ambient temperature of -20℃~40℃, no fire, explosion risk, corrosive and irritating media and dust-free working environment. It is strictly prohibited to lift molten metal materials, toxic, flammable and explosive objects.

Features
1.Compact structure, advanced technology
2.Small size, light weight
3.Stable and reliable performance
4.Flexible and convenient operation
5.Wide range of applications
6.Easy maintenance, low maintenance cost
7.Economical and durable

Technical Data

Type	Rated lifting capacity T	Lifting speed m/min	Hook gauge mm	I-beams mm	Lifting motor					Operating motor			Number of chain loops	Chain specifications	Test load T	Net weight KG
Type	Rated lifting capacity T	Lifting speed m/min	Hook gauge mm	I-beams mm	Power KW	Rotate speed r/min	Phase P	Voltage V	Frequency Hz	Power KW	Rotate speed r/min	Running speed m/min	Number of chain loops	Chain specifications	Test load T	Net weight KG
WBH-00501SL	0.5	6.8	440	60-190	0.75	1440	3	200-460	50/60	0.4	1440	11/21	1	Ф6.3	0.625	0.81
WBH-01001SL	1	6.6	480	60-190	1.5	1440	3	200-460	50/60	0.4	1440	11/21	1	Ф7.1	1.25	1.1
WBH-02001SL	2	6.6	570	82-228	3.0	1440	3	200-460	50/60	0.4	1440	11/21	1	Ф10.0	2.5	2.3
WBH-02002SL	2	3.3	535	82-228	1.5	1440	3	200-460	50/60	0.4	1440	11/21	2	Ф7.1	2.5	2.2
WBH-03001SL	3	5.4	640	82-228	3.0	1440	3	200-460	50/60	0.75	1440	11/21	1	Ф11.2	3.75	2.8
WBH-03002SL	3	4.4	685	82-228	3.0	1440	3	200-460	50/60	0.75	1440	11/21	2	Ф10.0	3.75	2.8
WBH-05002SL	5	2.7	740	100-256	3.0	1440	3	200-460	50/60	0.75	1440	11/21	2	Ф11.2	6.25	5.6
WBH-07503SL	7.5	1.8	890	100-256	3.0	1440	3	200-460	50/60	0.75	1440	11/21	3	Ф11.2	9.4	8.4
WBH-10004SL	10	2.7	880	110-294	3.0×2	1440	3	200-460	50/60	0.75	1440	11/21	4	Ф11.2	12.5	11

Spare Parts

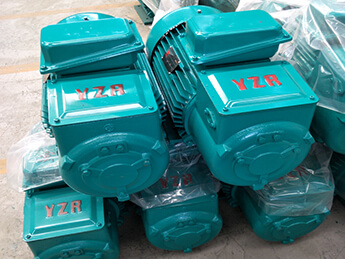

Motor
The core part of the electric hoist, used to generate power.

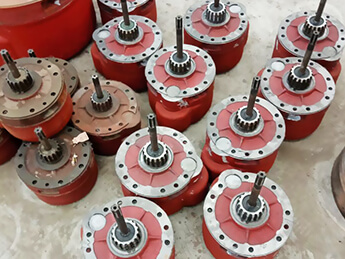

Transmission system
Includes a reducer and a chain, used to transmit the power of the motor to the hoist.

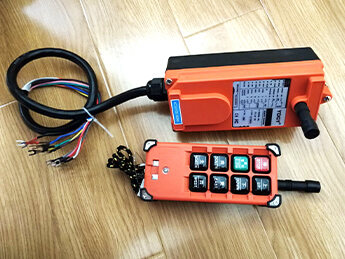

Control system
Includes control buttons and switches, used to control the rise and fall of the electric hoist.

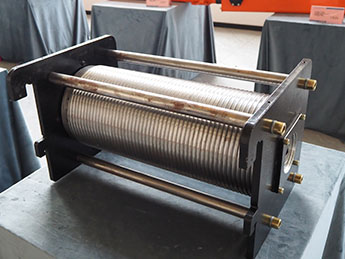

Suspension system
Includes wire ropes and suspension components, used to suspend loads.

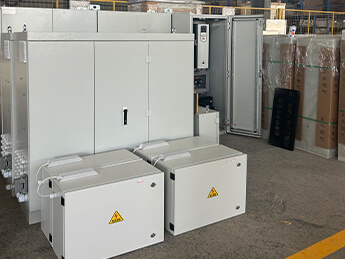

Power supply system
Includes batteries and chargers, used to provide power.

Keywords

Electric Hoist

Headroom Chain Hoist

Load capacity: 0.5~10t Lifting height: 3m/9m Working level: M2/M5 Application:molds, machinery manufacturing, warehousing and logistics, shipbuilding, bridge construction and other industries and factories and other special purposes.
