Description
Choose normal or high or super-high temperature type according to the material’s temperature. If below 150℃ choose normal type, between 150℃ and 600℃ high type；above 600℃but with a limit under 700℃, super-high type.
Super-high temperature lifting electromagnet type can be supplied with cooling equipment, that is : after several times of lifting hot billet, the attraction force would reduce obviously, then you should place the electromagnet into cold water pool for some seconds, after that put it into operation again, we call it as high temperature diving electromagnet. Owing to some special process technics and smart heat dispersion structure, welding will never get split and the coil will always be waterproof.
Working Condition
1. High temperature type: -40 ° C to+700 ° C;
2. The altitude shall not exceed 2000m;
3. Relative humidity of the air: When the air temperature is 20 degrees Celsius, the relative humidity of the surrounding air shall not exceed 90%; When the air temperature is 40 degrees Celsius, the relative humidity of the surrounding air should not exceed 85%
Features
1.The coil is wound with aluminum wire, and the insulation material has good heat resistance. The insulation structure is reasonable, and the coil insulation is not easy to breakdown.
2.The electromagnet adopts special heat resistance measures, so it can lift scrap steel below 650 ℃.
Technical Data
|
Model |
Cold- state Power |
Cold-state current (A) |
Overall Dimension(mm) |
Mass(kg) |
Lifting Capacity of 2 Units |
|||||||||
|
200 Billet |
240 Billet |
|||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
Length(m) |
Piece(s) |
Length(m) |
Piece(s) |
||||
|
MW42-90110L/3 |
9.7 |
44.1 |
900 |
1100 |
1100 |
500 |
110 |
180 |
40 |
2010 |
9.5 |
4 |
8.0 |
3 |
|
MW42-110110L/3 |
11.9 |
54.1 |
1100 |
1100 |
500 |
125 |
200 |
45 |
2430 |
5 |
4 |
|||
|
MW42-140110L/3 |
14.2 |
64.5 |
1400 |
1150 |
600 |
125 |
200 |
50 |
2950 |
6 |
5 |
|||
|
MW42-110130L/3 |
11.8 |
53.6 |
1100 |
1300 |
1100 |
500 |
125 |
200 |
50 |
2890 |
11.5 |
5 |
10.0 |
4 |
|
MW42-140130L/3 |
14.0 |
63.6 |
1400 |
1150 |
600 |
140 |
250 |
55 |
3580 |
6 |
5 |
|||
|
MW42-170130L/3 |
18.2 |
82.7 |
1700 |
1250 |
600 |
140 |
250 |
60 |
4190 |
7 |
6 |
|||
|
MW42-140140L/3 |
15.1 |
68.6 |
1400 |
1400 |
1150 |
600 |
140 |
250 |
60 |
4260 |
14.0 |
6 |
12.0 |
5 |
|
MW42-170140L/3 |
18.0 |
81.8 |
1700 |
1250 |
600 |
160 |
250 |
65 |
4950 |
7 |
6 |
|||
|
MW42-210140L/3 |
22.2 |
100.9 |
2100 |
1400 |
700 |
160 |
250 |
70 |
6120 |
9 |
8 |
|||
Spare Parts

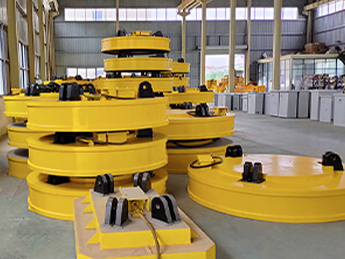

Lifting Magnet
A device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off. Electromagnets have extremely wide applications in daily life. The invention of electromagnets also greatly increased the power of generators.

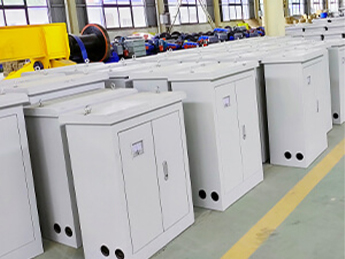

Electrical control cabinet
The Electrical control cabinet adopts a three wire two phase half wave rectification method, and uses the energy storage of the electromagnet to control reverse demagnetization during discharge. This product has the characteristics of simple circuit, compact structure, small volume, and light weight. DKP-A is a three wire two half wave rectifier control equipment. When the grid voltage is too high or too low, adjusting the potentiometer can adjust the output voltage within 170-240V, so that the output voltage is basically close to 220V.

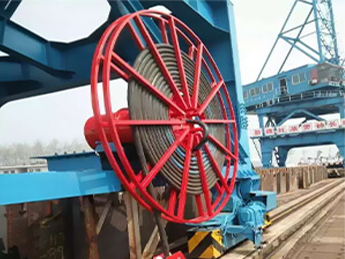

Cable drum
Cable reel is a cable winding device that provides power, control power, or control signals for large mobile devices. It is applied to heavy machinery equipment such as port gantry cranes, container cranes, ship loaders, tower cranes, and other similar working conditions.
