Description
The Electric Permanent Lifter suction cup utilizes the interaction between the electromagnet and the permanent magnet to adsorb the workpiece. When current passes through an electromagnet, a magnetic field is generated, which attracts the permanent magnet. When the current passes through the permanent magnet, an opposite magnetic field is generated to counteract the magnetic field generated by the electromagnet, causing the workpiece to be firmly attached to the suction cup. When the direction of the current changes, the position of the workpiece will also change accordingly.

Working Condition
1. Check before turning on the power: Ensure that the power switch of the electric permanent magnet suction cup is turned off to prevent surges or other unsafe factors.
2. Recognition of magnetic area: Familiarize yourself with the working range of electric permanent magnet suction cups, avoid touching the magnetic substances around the suction cups, and prevent the influence of magnetic force from causing objects to be adsorbed.
3. Keep the suction cup clean: Regularly clean the surface of the suction cup to ensure that there is no oil, impurities, or other substances that may affect its performance.
4. Avoid applying pressure under the suction cup: Any form of pressure can affect magnetic force, leading to adsorption failure or damage to objects.
5. Follow operating procedures: Follow the instructions provided by the manufacturer of the electric permanent magnet suction cup and do not attempt untrained operations.
6. Pay attention to the position of the power cord: Ensure that the power cord does not come into contact with any conductive substances or be trapped to prevent short circuits.
7. Avoid use in damp environments: Electric permanent magnet suction cups should be avoided in damp or excessively humid environments to prevent electric shock or short circuits.

Features
1.The Electric Permanent Lifter lifting tools and fixtures can be used for lifting and handling various metal and non-metallic materials, such as steel, mechanical parts, automotive manufacturing and other production processes.
2.Positioning and fixation: Electric permanent magnet fixtures and adsorption devices can be used for positioning and fixation of various metal and non-metal materials, such as metal parts in machine tools and molds, goods in logistics and packaging industries, etc.

Technical Data

Model	Lifting capacity（kg）	Min Thickness（mm）	Voltage（V）	Chargetime（h）	Size（mm）						Weight (kg)
					A	B	C	D	d	H
HBEP-500	500	6	DC24	5-7	220	390	70	20	50	530	65
HBEP-1000	1000	6	DC24	5-7	220	390	85	25	50	545	75
HBEP-1500	1500	10	DC24	6-8	220	490	75	30	60	420	180
HBEP-2000	2000	12	DC24	6-8	220	490	90	30	60	435	215
HBEP-3000	3000	16	DC48	7-9	370	450	100	40	85	550	260
HBEP-5000	5000	20	DC60	7-9	540	720	115	40	85	565	380
HBEP-300B	300	4	DC24	5-7	220	390	60	20	50	520	70
HBEP-600B	600	4	DC24	5-7	220	390	60	20	50	520	78
HBEP-1000B	1000	4	DC48	7-9	220	490	60	30	60	405	90



Spare Parts

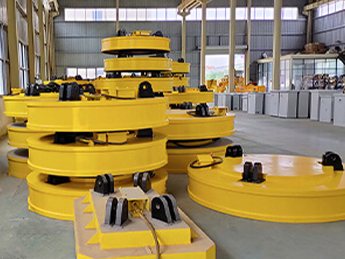

Lifting Magnet
A device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off. Electromagnets have extremely wide applications in daily life. The invention of electromagnets also greatly increased the power of generators.

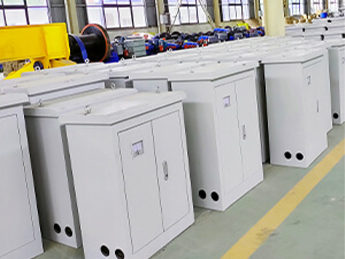

Electrical control cabinet
The Electrical control cabinet adopts a three wire two phase half wave rectification method, and uses the energy storage of the electromagnet to control reverse demagnetization during discharge. This product has the characteristics of simple circuit, compact structure, small volume, and light weight. DKP-A is a three wire two half wave rectifier control equipment. When the grid voltage is too high or too low, adjusting the potentiometer can adjust the output voltage within 170-240V, so that the output voltage is basically close to 220V.

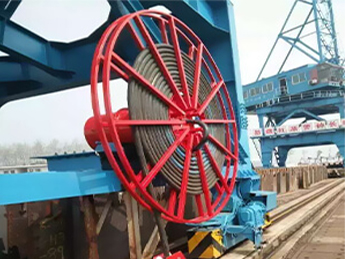

Cable drum
Cable reel is a cable winding device that provides power, control power, or control signals for large mobile devices. It is applied to heavy machinery equipment such as port gantry cranes, container cranes, ship loaders, tower cranes, and other similar working conditions.

Instantaneous power: 1.92KW Insulation level: H-level Protection level:IP56 Rated suction: 1.0T Design working clearance: 1.5mm Working air gap pull-down force: 1.5T Maximum pull-out force: 4.66T Suction safety factor: greater than 3.5 External dimensions: 320 * 250 * 86mm Weight: approximately 65kg
