Description
Added intelligent guidance and control system.
AGV moves on the mobile line or parks on-site through magnetic tape guidance and RFID cards.
AGV can move forward and backward, turn left and right, rotate 360 degrees in place, and automatically lift to complete material conveying tasks.
The types of AGV transfer vehicles include pallet AGV, submersible AGV, and backpack AGV.
AGV is composed of hydraulic lifting system, differential drive system, steering wheel drive system, PLC control system, guidance system, communication system, alarm system, operating system, power, etc. It is usually used for the transportation of logistics, warehouses, and automated production line goods.
AGV intelligent trackless electric carts is a transfer vehicle that uses lithium batteries as the power source, a motor reducer as the driving system, and solid rubber coated wheels to walk directly on the ground. Its operation is unrestricted, imported wheels protect the ground from damage, 360 ° turn in place to adapt to narrow space operation, 360 ° multi-directional protection, automatic stop when encountering people, and other functions solve safety problems during operation. The design of touch screen and joystick operation makes the operation more user-friendly.

Working Condition
1. Prohibited on rainy days. Because the vehicle is powered by electricity, during transportation, if it rains, there will be a large amount of water accumulation between the tracks, which can easily cause short circuits between the tracks. Therefore, it is not suitable for use on rainy days. If emergency use is indeed necessary, certain protective and drainage measures should be taken to ensure that the power system is not damaged.
2. Cannot be used in environments with high dust density. In production environments with high dust density, the conductivity of the track will decrease, which will affect the operation of electric flatcars

Features
1.Omnidirectional movement is suitable for heavy-duty, precision assembly, transportation and other processes
2.Low demand for the ground. No damage to the ground: wireless remote control is used. Side control is convenient and simple
3.It has the ability to be customized and expanded, and can be used in conjunction with other assembly equipment to achieve obstacle avoidance alarm function
4.Low environmental requirements for use, suitable for use in factories, roads, and other conditions
5.Long service life. The main components of the equipment are all cast using selected materials, with fine craftsmanship, ensuring high operational efficiency and good wear resistance of the entire transportation equipment

Technical Data

Spare Parts

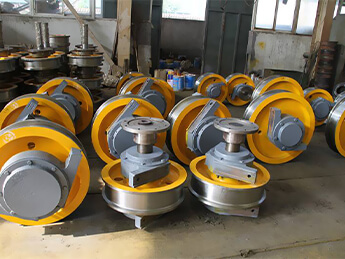

Wheel group
The wheels are made of crane specific wheels, and ZG55 is used for the wheels. The overall quenching, hardness of the wheel tread and inner edge HB320-380, and depth of 20mm are used for the wheels; The wheel axle adopts 45 steel quenching and tempering heat treatment, the bearing seat adopts ZG45, and the bearing adopts radial roller bearing. The axial automatic micro centering of the bearing can eliminate and overcome the elastic deformation of the flat car under no-load and full load conditions and the deviation of the lateral parallelism of the track, ensuring the balance of the flat car’s operation on the track and improving its service life. After the wheels are assembled, rotate them flexibly

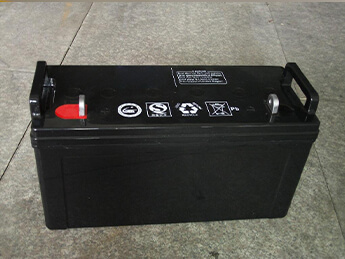

Battery
The flat car adopts lead-acid traction batteries (hereinafter referred to as batteries) for traction, following the standard GB/T 7403.1-1996 “Lead acid traction batteries”. It is mainly used as a DC power source for handling trucks, forklifts, etc. used in industrial and mining enterprises, warehouses, docks, and stations, and can also be used as a supporting power source in other aspects
