Description
The drive can be divided into electric single drive and electric dual drive.
The installation of reducers can be divided into horizontal on the vehicle and vertical under the vehicle.
The frame of the steel ladle car is a box structure with four crossbeams and two vertical beams.
It runs on track and is powered by 380V AC power.
Steel ladle electric carts is a type of electric flat car, which is a track flat car used for transporting steel ladles in steel mills. Due to the high temperature of molten steel, steel slag, and other materials, in order to avoid burns, the manufacturer has specially designed a track flat car for this purpose. Its power is provided by an electric motor, which is a high-temperature and explosion-proof motor.
Working Condition
1. There is a high-temperature solution, which poses a risk of burns and scalds.
2. There is a possibility of personnel poisoning due to the occurrence of SO2 and SO3 gases.
3. Large amounts of dust can cause respiratory system damage.
4. There is a driving danger in the operation of slag ladle steel ladle trucks.
5. If the cooling time of the slag package is not enough, it is easy to cause explosion during the pouring process.
Features
1.Can be operated remotely to avoid high temperature burns.
2.Running on track, running smoothly to avoid splashing of molten steel.
3.The operating speed can be freely controlled.
Technical Data
|
Flat cart model |
BXC-2T |
BXC-20T |
BXC-50T |
BXC-63T |
BXC-100T |
BXC-150T |
|
Rated load capacity (T) |
2 |
20 |
50 |
63 |
100 |
150 |
|
Wheelbase (MM) |
1200 |
2800 |
4200 |
4300 |
4900 |
7000 |
|
Rail inner distance (MM) |
1200 |
1435 |
1435 |
1435 |
2000 |
2000 |
|
Wheel diameter (MM) |
270 |
350 |
500 |
600 |
600 |
600 |
|
Number of wheels (pieces) |
4 |
4 |
4 |
4 |
4 |
8 |
|
Ground clearance (MM) |
50 |
50 |
50 |
75 |
75 |
75 |
|
Running speed (MIN) |
0-25 |
0-20 |
0-20 |
0-20 |
0-20 |
0-18 |
|
Motor power (KW) |
1 |
2.2 |
5 |
8 |
10 |
15 |
|
Battery capacity (A/H) |
180 |
180 |
330 |
400 |
440 |
600 |
|
Battery voltage (V) |
24 |
48 |
48 |
72 |
72 |
72 |
Spare Parts

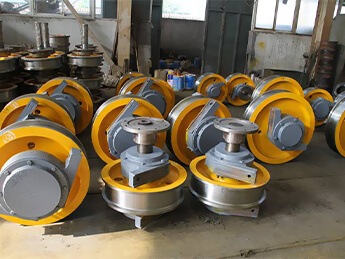

Wheel group
The wheels are made of crane specific wheels, and ZG55 is used for the wheels. The overall quenching, hardness of the wheel tread and inner edge HB320-380, and depth of 20mm are used for the wheels; The wheel axle adopts 45 steel quenching and tempering heat treatment, the bearing seat adopts ZG45, and the bearing adopts radial roller bearing. The axial automatic micro centering of the bearing can eliminate and overcome the elastic deformation of the flat car under no-load and full load conditions and the deviation of the lateral parallelism of the track, ensuring the balance of the flat car’s operation on the track and improving its service life. After the wheels are assembled, rotate them flexibly.

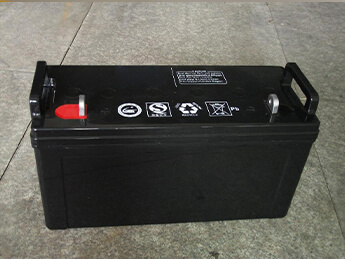

Battery
The flat car adopts lead-acid traction batteries (hereinafter referred to as batteries) for traction, following the standard GB/T 7403.1-1996 “Lead acid traction batteries”. It is mainly used as a DC power source for handling trucks, forklifts, etc. used in industrial and mining enterprises, warehouses, docks, and stations, and can also be used as a supporting power source in other aspects.
